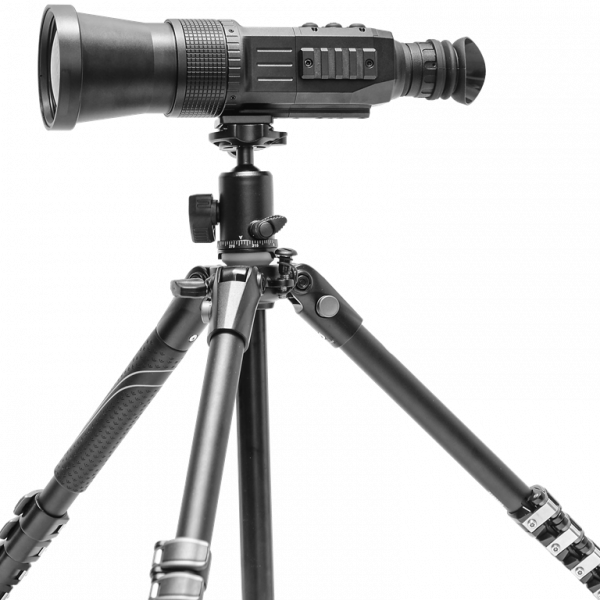

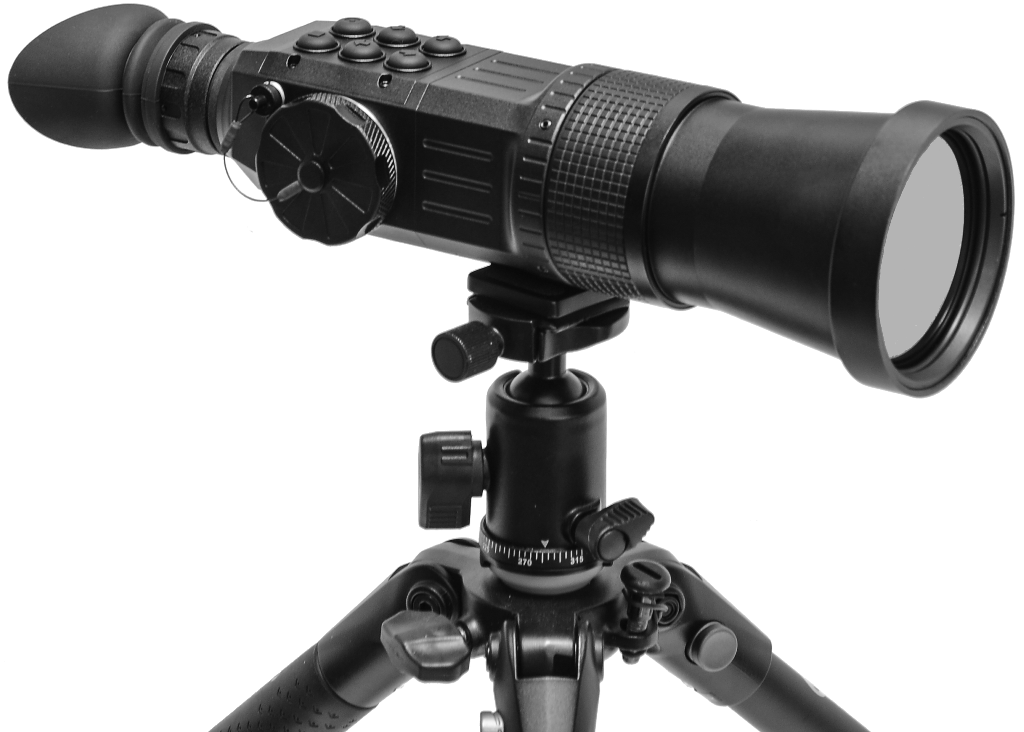

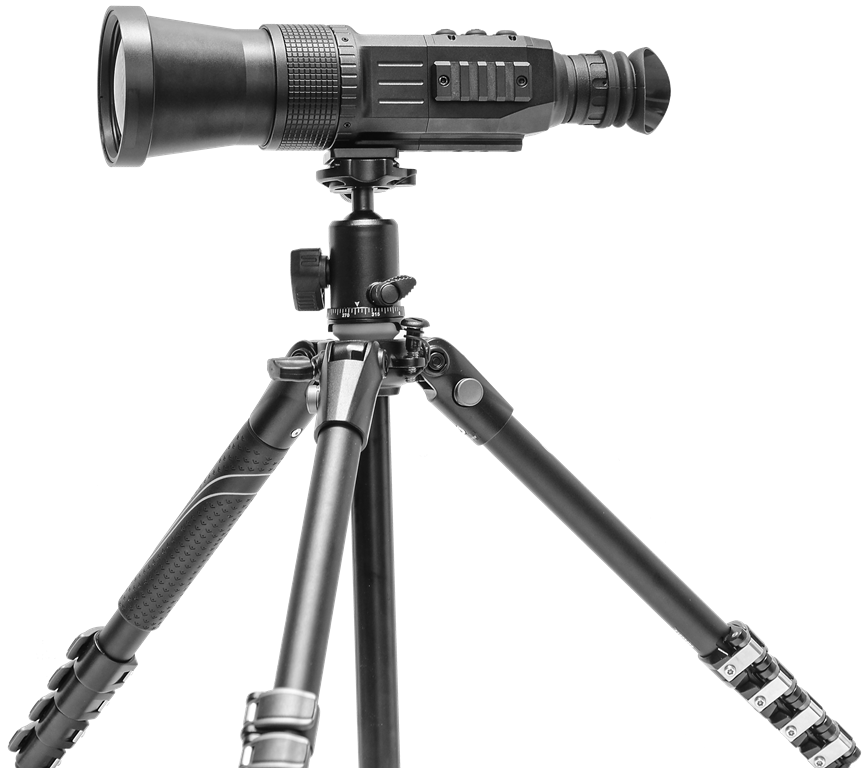

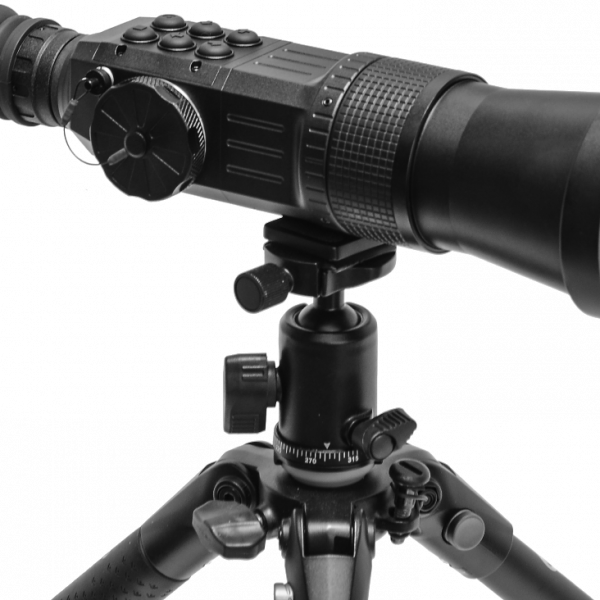

General Starlight UNITEC-M100 Long-Range Thermal Observation System

$0.00

General Starlight UNITEC-M100 Long-Range Thermal Observation System

Out of stock

Email
Category:

Description

UNITEC-M100 is the best-in-class thermal observation system designed for long-range detection and reconnaissance. Equipped with state-of-the-art thermal engines and electronics built around it, UNITEC-M100 offers highly sought-after features while retaining economic price. It is the optimal 24/7 observation solution oriented towards budget-savvy clients.



Features:

High-Resolution Uncooled FPAs: 384×288 or 640×480

Fast Refresh Rate: 50Hz

Quality and “Fast” Low-F-Number Germanium Lenses

Optional Built-In Video Recorder

Ultra-Low Power Consumption

Completely Silent System Operation

Precision-Machined Rugged Aluminum Body

Lowest Heat Dissipation

Video-out for External Display and Recording

Interchangeable Optics

High-Resolution AMOLED Display 800×600

Stadiametric Rangefinder

24-hour Operation

Manual and Automatic FPA Sensitivity Adjustment

Manual Display Brightness Adjustment

Black Hot / White Hot Polarity Control

External Battery Pack Compatibility

Complete Dust– and Waterproof Protection

Optional Remote Control

7-Year Manufacturer’s Warranty

Made in Canada

Specifications

UNITEC-M100-38 UNITEC-M100-64
Optical Magnification 6X 4X
Objective Lens Focal Length 100mm
Objective Lens F-Number f/1.4
Field of View 3.7°x2.8° 6.2°x4.7°
Focusing Range 3m .. Infinity
Diopter Adjustment Range -6 .. +4
FPA Resolution and Pitch 384×288, 17µm 640×480, 17µm
FPA Type Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)
FPA Sensitivity <60mK
FPA Refresh Rate 50Hz
Digital Zoom 2X and 4X
Display AMOLED, Colour, 800×600
Imaging Modes 1 Monochrome + 8 Colour
Digital Video Recorder Optional: Built-In with microSD Card or External with SD Card
Max. Detection Human (1.7×0.5m) 3,330m
Max. Detection Vehicle (2.3×2.3m) 4,500m
Accepted Batteries 4pcs AA, any kind: Lithium, Rechargeable, Alkaline, etc.
Battery Life Up to 10 Hours
Environmental Protection IP66, IP67 or Better (Optional)
Dimensions 280x105x105mm
Weight 960 grams
Operating Temperature -40°C .. +50°C
Warranty 7 Years, Limited
Export Available Worldwide *
