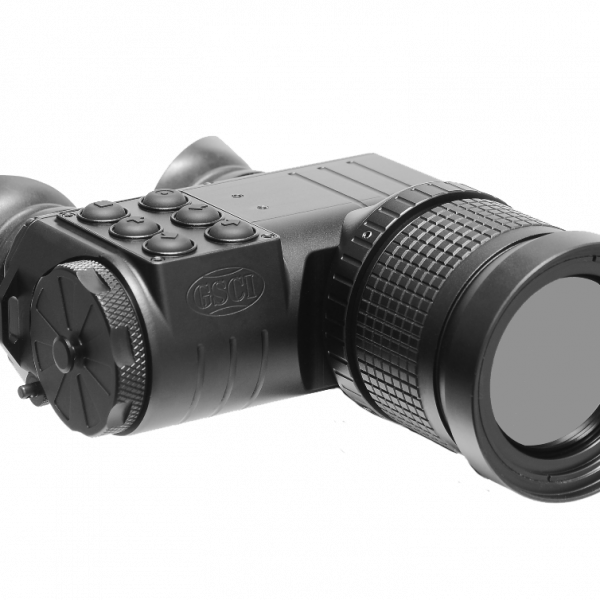

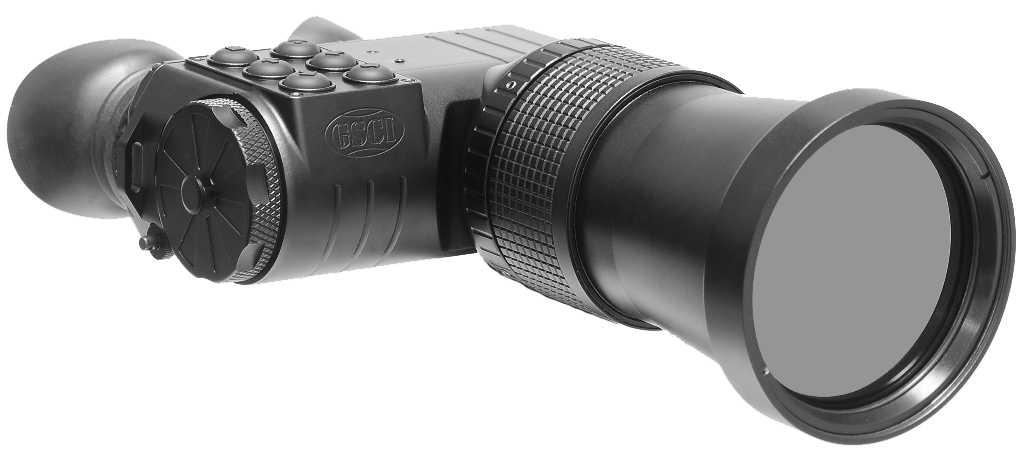

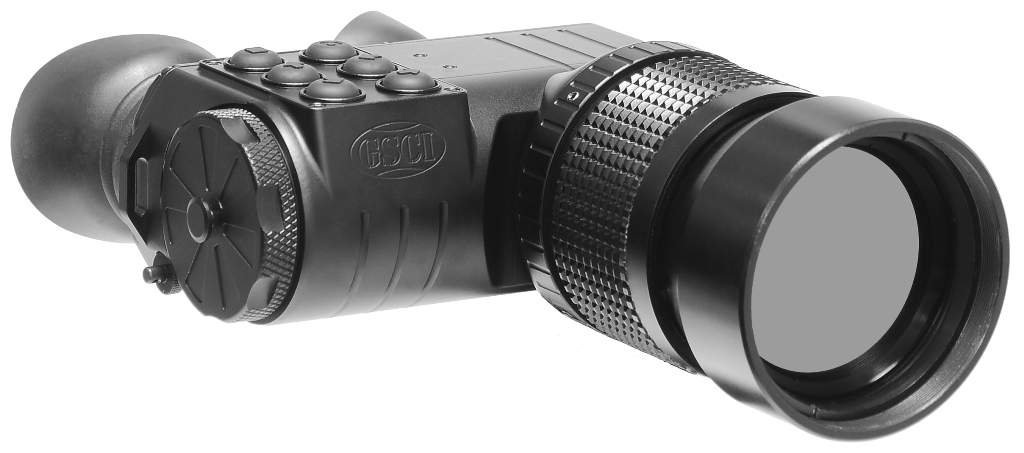

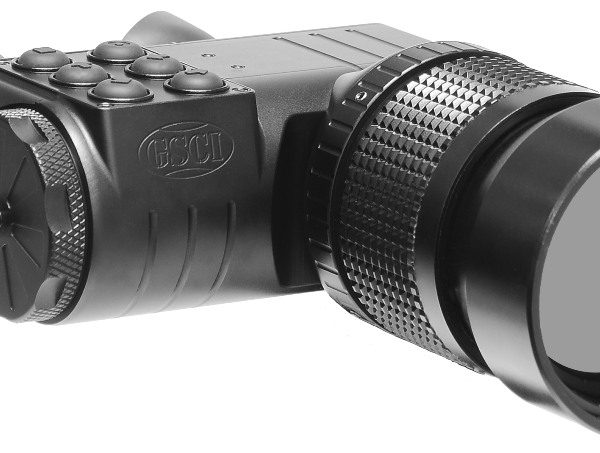

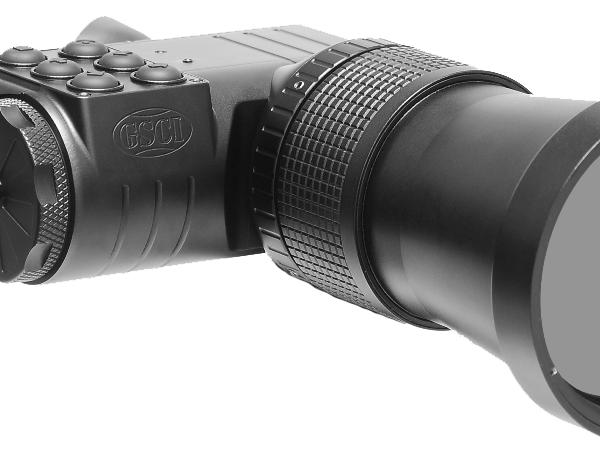

General Starlight UNITEC-B Long-Range Thermal Imaging Binoculars

$0.00

General Starlight UNITEC-B Long-Range Thermal Imaging Binoculars

Out of stock

Email
Category:

Description

UNITEC-B is a family of commercially-available thermal binocular systems equipped with uncooled, shutterless thermal engines and a choice of 50, 75 or 100mm Germanium objective lenses.

UNITEC-B has dual-AMOLED display system that designates one hi-res AMOLED display for each individual eyepiece and has no moving parts inside. UNITEC-B can be comfortably operated for prolonged viewing periods without eye strain.

With fully aluminum enclosure, UNITEC-B is all-around professional thermal imaging solution for day- and night-time operations that demand long-range observation capabilities.



Features:



High-Resolution Uncooled FPAs: 384×288 and 640×480

Fast Refresh Rate: 50Hz

Quality and “Fast” Germanium Lenses

Dual-AMOLED Display Design

Optional Built-In Video Recorder

Ultra-Low Power Consumption

Completely Silent System Operation

Precision-Machined Rugged Aluminum Body

Lowest Heat Dissipation

Video-out for External Display and Recording

Stadiametric Rangefinder

High-Resolution AMOLED Displays 800×600

24-hour Operation

Optional Remote Control

Manual and Automatic FPA Sensitivity Adjustment

Manual Display Brightness Adjustment

Black Hot / White Hot Polarity Control

External Battery Pack Compatibility

Complete Dust– and Waterproof Protection

7-Year Manufacturer’s Warranty

Made in Canada

Specifications

UNITEC-B50-38 UNITEC-B50-64 UNITEC-B75-38 UNITEC-B75-64 UNITEC-B100-38 UNITEC-B100-64
Optical Magnification 3X 2X 4.5X 3X 6X 4X
Objective Lens Focal Length 50mm 75mm 100mm
Objective Lens F-Number f/1.0 f/1.3 f/1.4
Field of View 7.5°x5.6° 12.4°x9.3° 5.0°x3.7° 8.3°x6.2° 3.7°x2.8° 6.2°x4.7°
Focusing Range 1m .. Infinity 2m .. Infinity 3m .. Infinity
FPA Resolution and Pitch 384×288, 17µm 640×480, 17µ 384×288, 17µm 640×480, 17µ 384×288, 17µm 640×480, 17µ
FPA Type Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)
FPA Sensitivity <60mK
FPA Refresh Rate 50Hz
Digital Zoom 2X and 4X
Display Dual-AMOLED, Colour, 800×600
Imaging Modes 1 Monochrome + 8 Colour
Digital Video Recorder Optional: Built-In with microSD Card or External with SD Card
Max. Detection Human (1.7×0.5m) 1,660m 2,500m 3,330m
Max. Detection Vehicle (2.3×2.3m) 2,250m 3,380m 4,500m
Accepted Batteries 4pcs AA, any kind: Lithium, Rechargeable, Alkaline, etc.
Battery Life Up to 8 hours
Environmental Protection IP66, IP67 or Better (Optional)
Dimensions 161x142x71mm 181x142x71mm 218x149x86mm
Weight 825 grams 930 grams 925 grams
Operating Temperature -40°C .. +50°C
Warranty 7 Years, Limited
Export Available Worldwide *
