General Starlight TLR-7150 Elite Grade Ultra-Long Range Thermal Systems

$0.00

General Starlight TLR-7150 Elite Grade Ultra-Long Range Thermal Systems

Out of stock

Email
Category:

Description

The TLR-7150 Series are the top-of-the-line thermal observation systems that allow to clearly see objects located miles away from an operator. The combination of “fast” high-quality lens, superior FPA and proprietary image-enhancing algorithms bring the term performance to a whole new level.

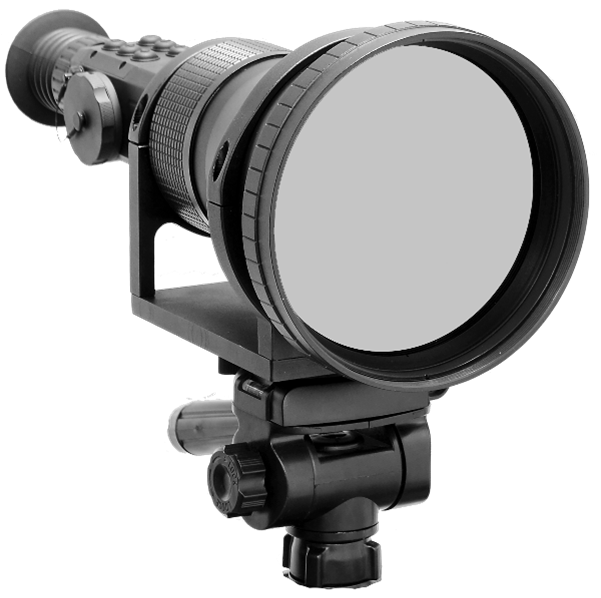

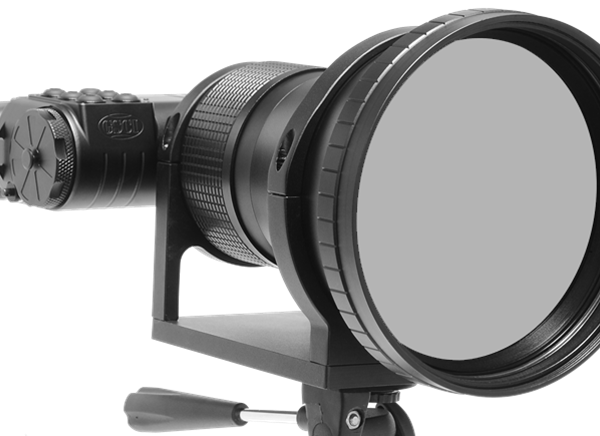

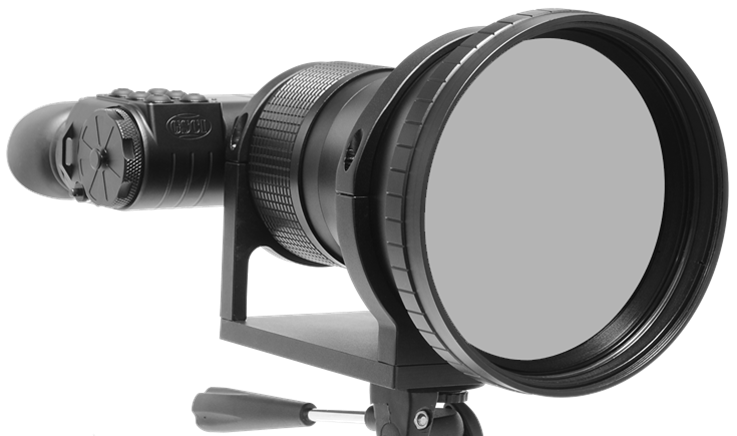

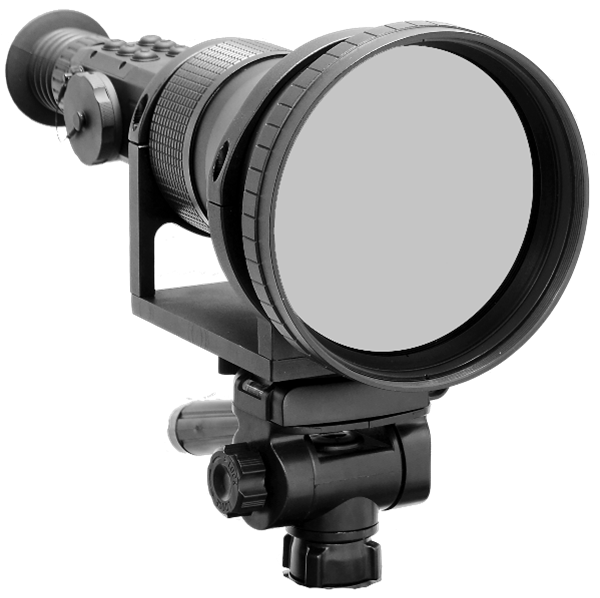

TLR-7150 is designed for and available to military and law-enforcement professionals worldwide. TLR-7150 is offered in Monocular (TLR-7150M) and Bi-ocular (TLR-7150B) configurations.



Features:



High-Performance Uncooled FPA: 640×480, 25Hz

“Fast” Germanium Lens: 150mm f/1.0

Built-In Video Recorder

Ultra-Low Power Consumption

Completely Silent System Operation

Mobile and Autonomous

Undetectable: Lowest Heat Dissipation

Video-out for External Display and Recording

High-Resolution Micro-OLED Display 800×600

Auto-Off Feature

Integrated Stadiametric Rangefinder

24-hour Operation

Vehicle Detection Range: over 6km

Manual and Automatic FPA Sensitivity Adjustment

Manual Display Brightness Adjustment

Black Hot / White Hot Polarity Control

External Battery Pack Compatibility

Remote Control

GSCI Proprietary Image-Enhancing Solutions (IESTM)

Dust– and Waterproof Protection

Available for Worldwide Export

7-Year Manufacturer’s Warranty

Made in Canada

Specifications

TECHNICAL SPECIFICATIONS
Objective Lens Focal Length 150mm
Objective Lens F-number f/1.0
Field of View 4.1°x3.1°
FPA Resolution 640×480, 17µm
FPA Type Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)
FPA Sensitivity <50mK
FPA Refresh Rate 50Hz
Magnification Optical 6X
Magnification Digital 2X and 4X
Maximum Total Magnification 24X
Digital Video Recorder Built-In (32GB microSD Card Included)
Power Source 4 AA Batteries and External Power Sources
Accepted Battery Types Any Kind: Lithium, Alkaline, Rechargeable, etc.
Battery Life on 4 AA, hours Up to 10 (M) Up to 8 (B)
Max. Detection, Human (1.7×0.5m) 5,100m
Max. Detection, Vehicle (2.3×2.3m) 6,760m
Environmental Protection IP67 or Better (Optional)
Dimensions, mm 381x165x170 (M) 317x165x170 (B)
Weight, kg 3.29 (M) 3.21 (B)
Warranty 7 Years, Limited
Export Available Worldwide *
