Description
GSCI CNVD-22
Description:

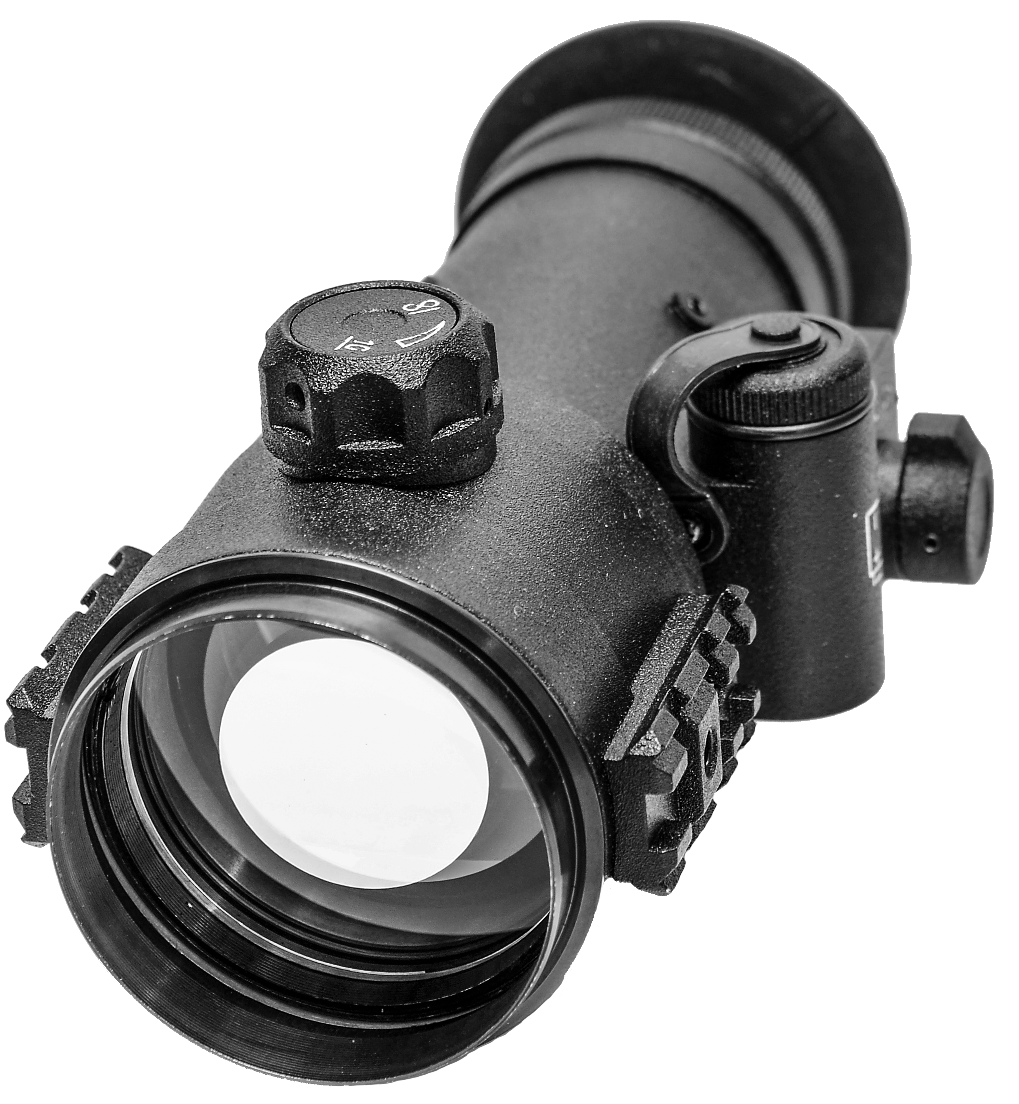

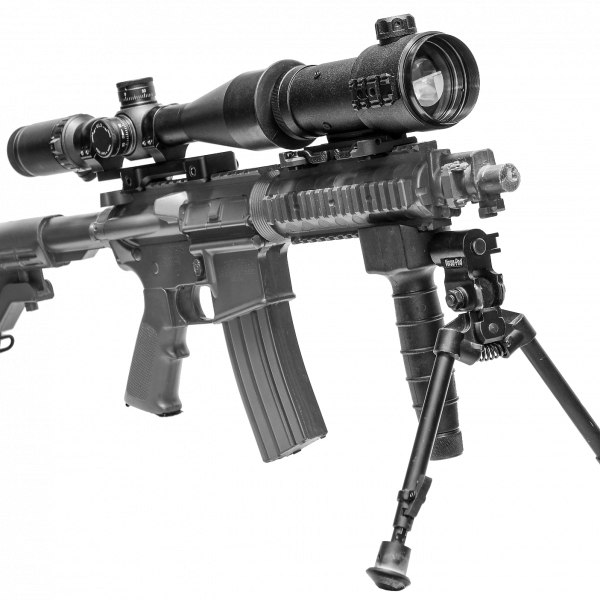

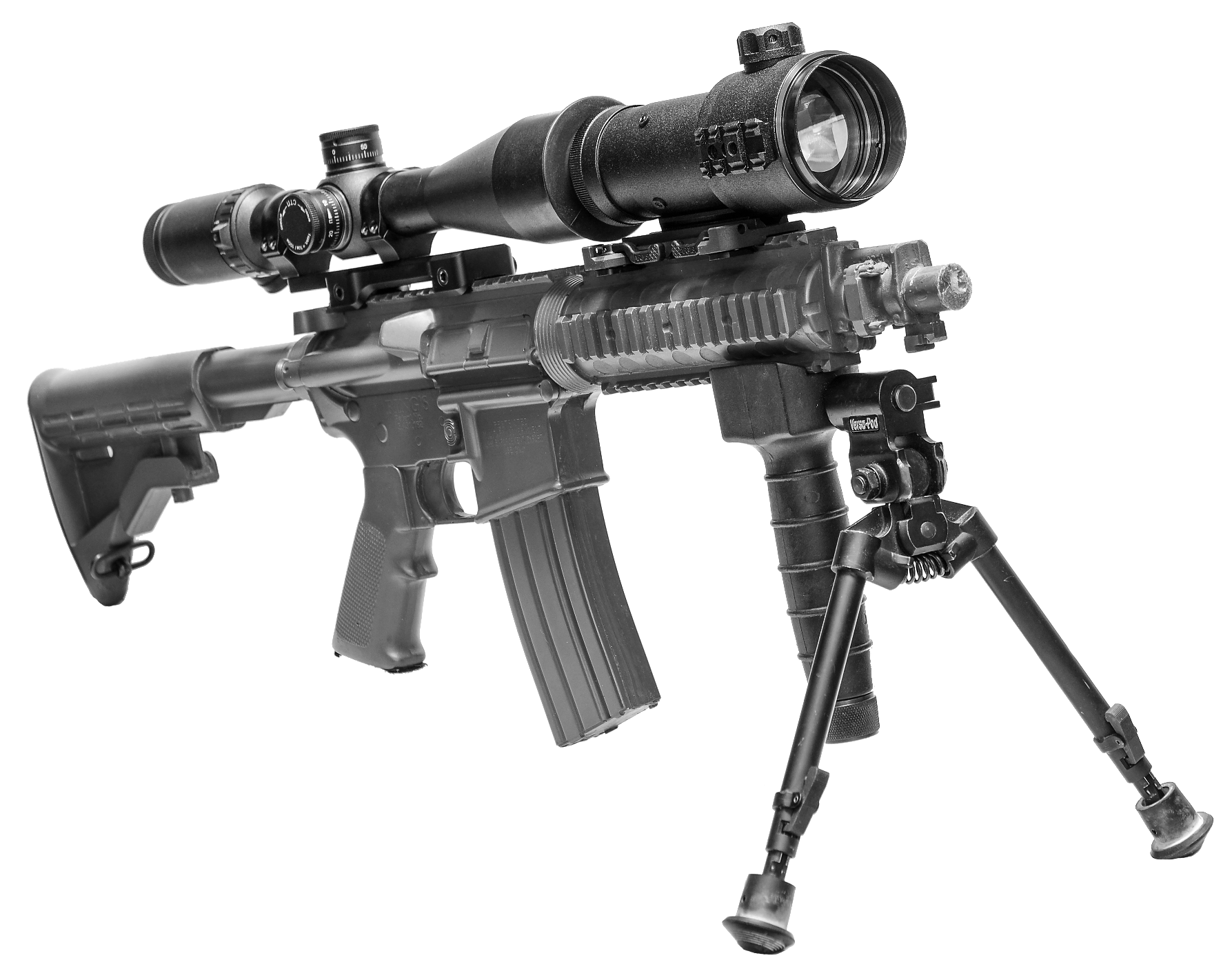

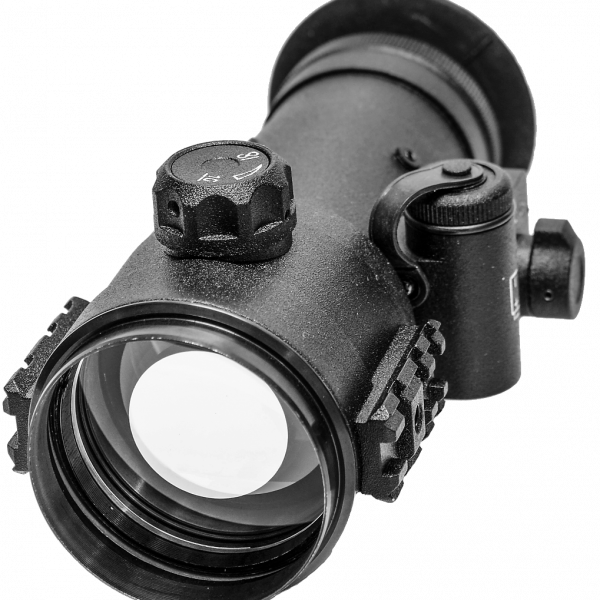

CNVD-22 is the clip-on night vision device designed to seamlessly pair with direct-view (daytime) scopes to endue them low-light observation capabilities for extended-range reconnaissance, target acquisition and engagement.
CNVD-22 offers convenience of installation and usage: with fast and easy pairing with your existing daytime scope no re-zeroing or removal of the day scope is required. Conversion from night vision to day scope mode and back is done is seconds.
CNVD-22 is a perfect tool for sniper applications and all other scenarios where stealth, speed and precision are the key factors for successful mission accomplishment.
Specifications
Technical Data:
Optical Magnification: 1X
Objective Lens Focal Length: 80mm (Catadioptric Lens)
Objective Lens F-number: f/1.6
Field of View (FOV): 13°
Focusing Range: 10m .. Infinity
Dayscopes Multiplicity: 1X -12X (Optimum: 7X – 10X)
Power Source: 1pc CR123
Battery Life: Up to 55 Hours
Environmental Protection: IPX6 or Better (Optional)
Dimensions: 185x66x79mm
Weight: 590 grams
Operating Temperature: -40°C .. +50°C
Warranty: 7 Years, Limited
Export: Available for Export Worldwide
Boresight Characteristics:
Accuracy: Factory Aligned to 1/2 MOA or Better
Retention: Permanent to within 1 MOA or Better
Repeatability: Within 1/2 MOA
Image Intensifier Tubes:
Gen 2+, Gen 3, XR5, 4G (contact us for tube’s availability)
